Five-wing PDC cutting layout
The product photographs show a five-wing fixed-cutter arrangement for non-coring drilling. Compare the face and gauge cutters, visible passages and connection before choosing a configuration.
What the five-wing designation establishes
It identifies the wing count of the illustrated layout. It does not by itself establish the bit diameter, cutter grade, body material, pressure rating or drilling-system qualification. Define these items in the selected specification where applicable.
Compare complete configurations
The five-wing arc-profile family is another existing configuration reference. For a different wing count, compare the six-wing arc-profile family. Check whether the face shape, cutter positions, gauge and flow paths also change, rather than attributing a difference in drilling performance to wing count alone.
Information for contractors and OEM buyers
Send the hole dimensions, ground description, rig, connection and flushing system. For an OEM order, add the drawing revision, material and inspection requirements and supplied assembly scope. The PDC design guide and price-comparison guide explain how to put those details into a comparable enquiry.

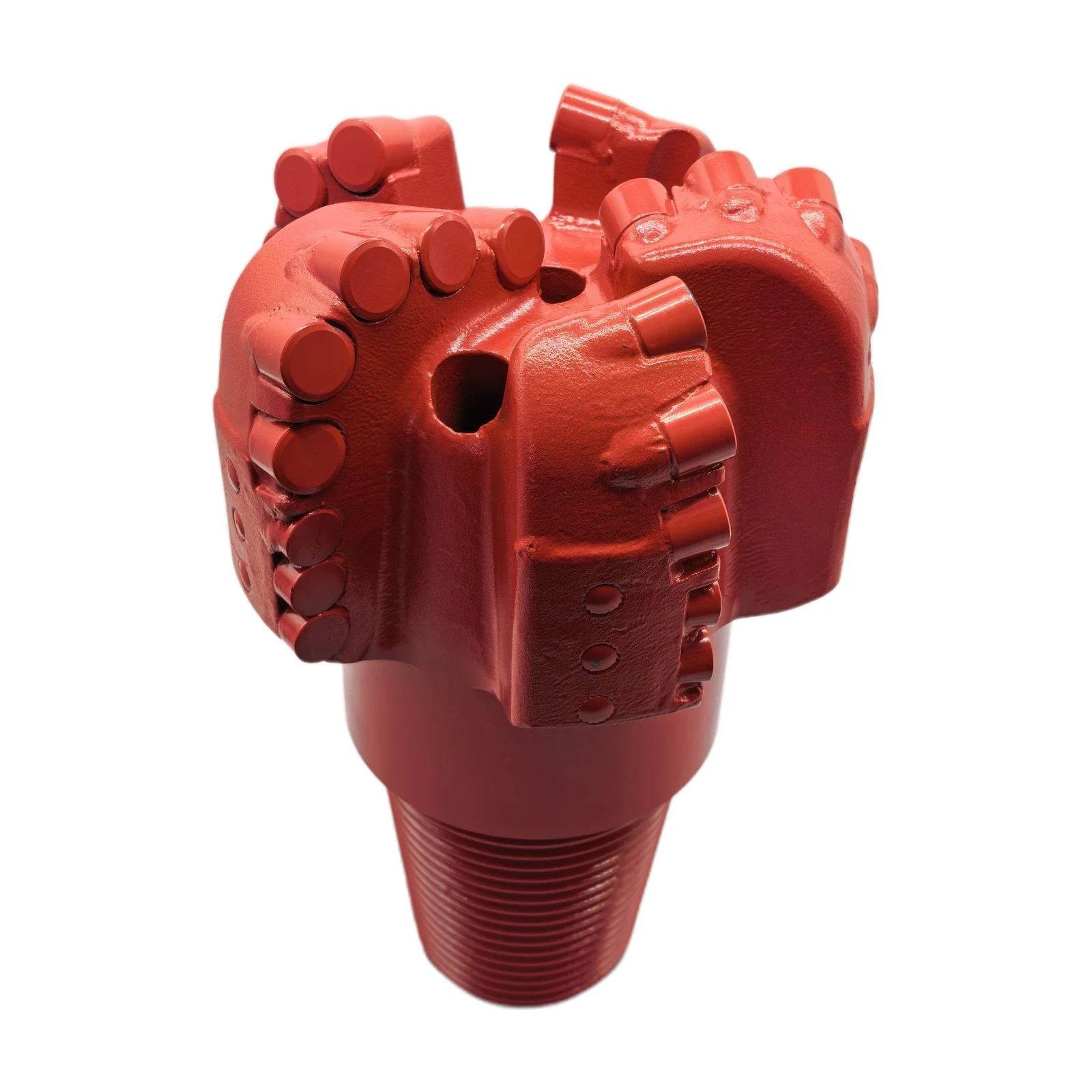

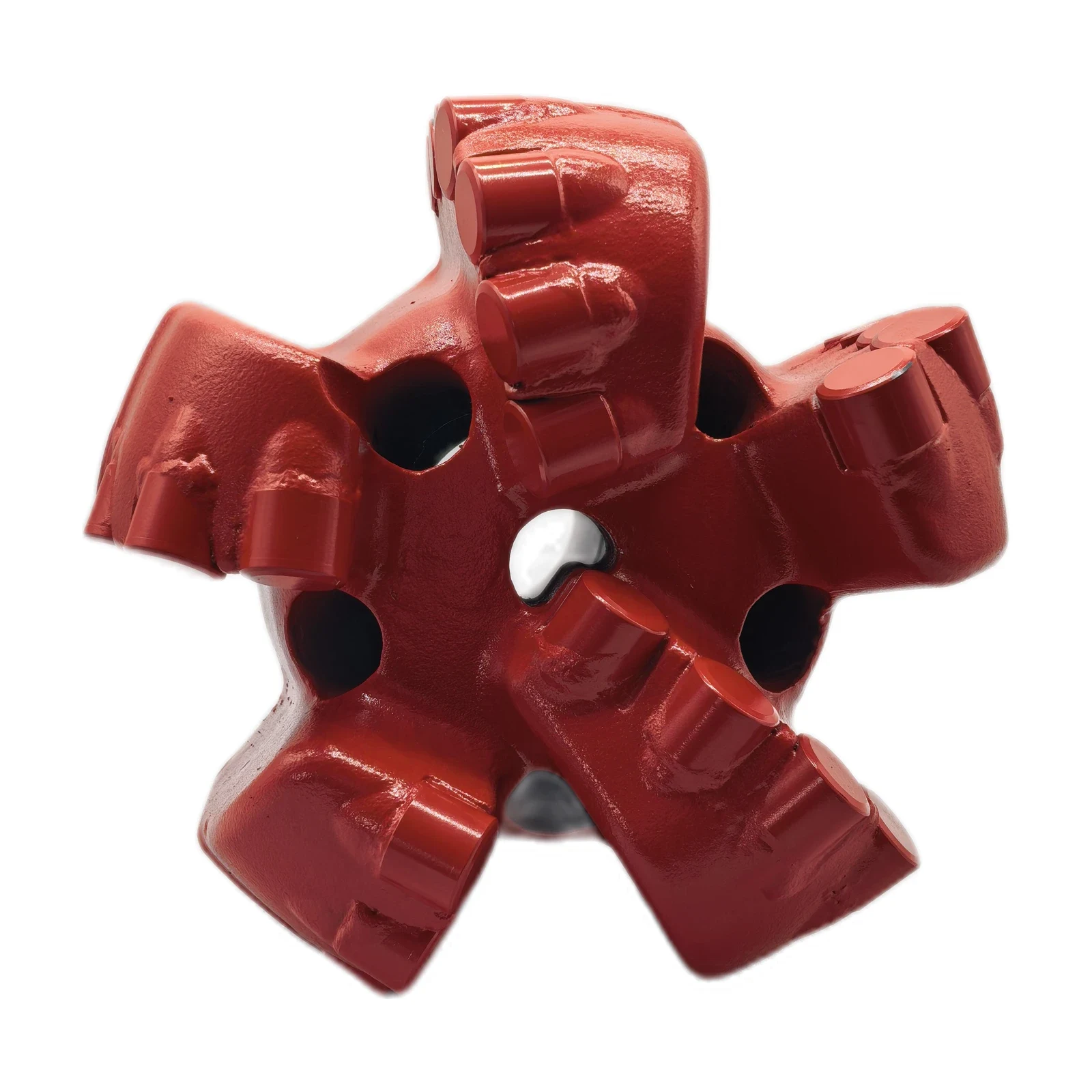

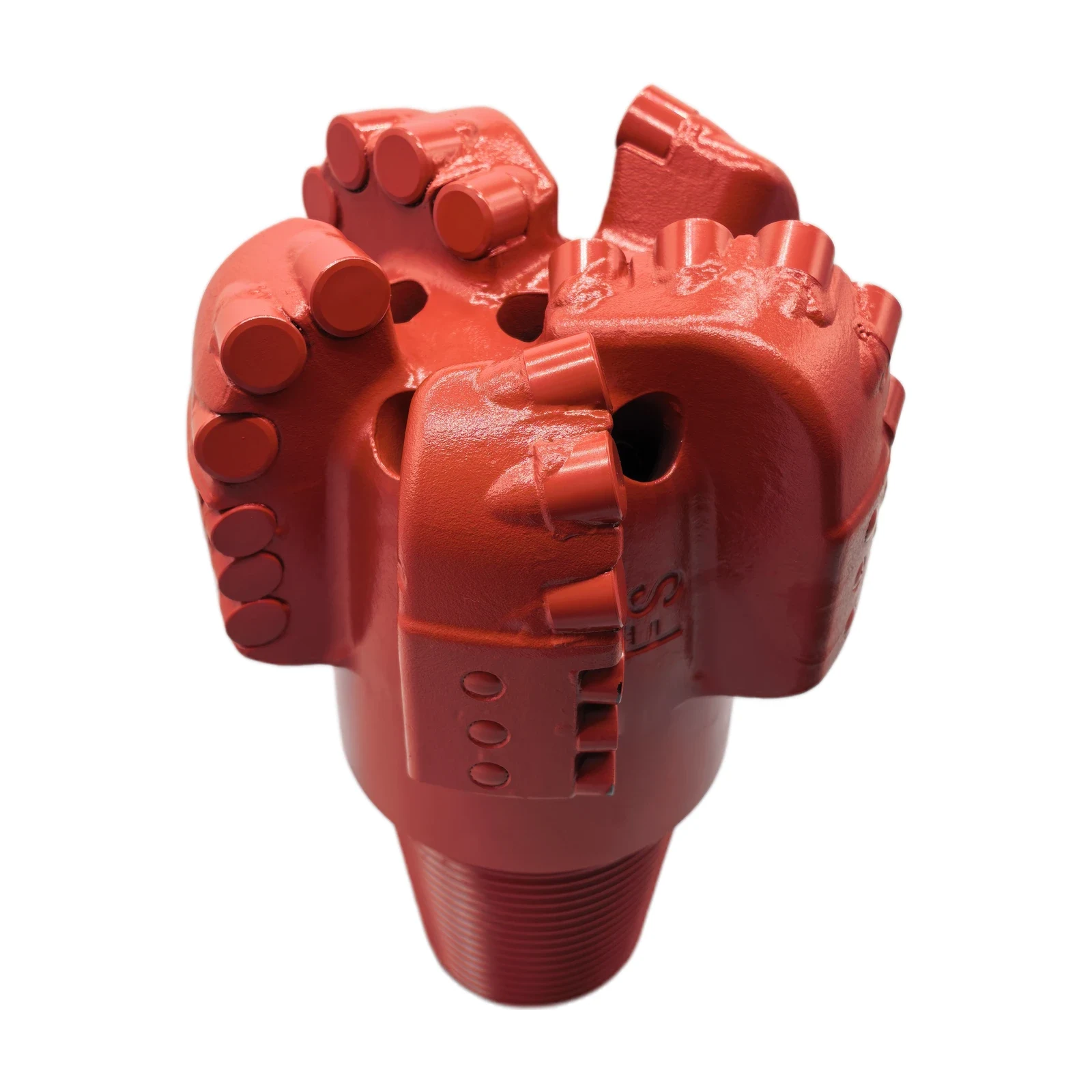

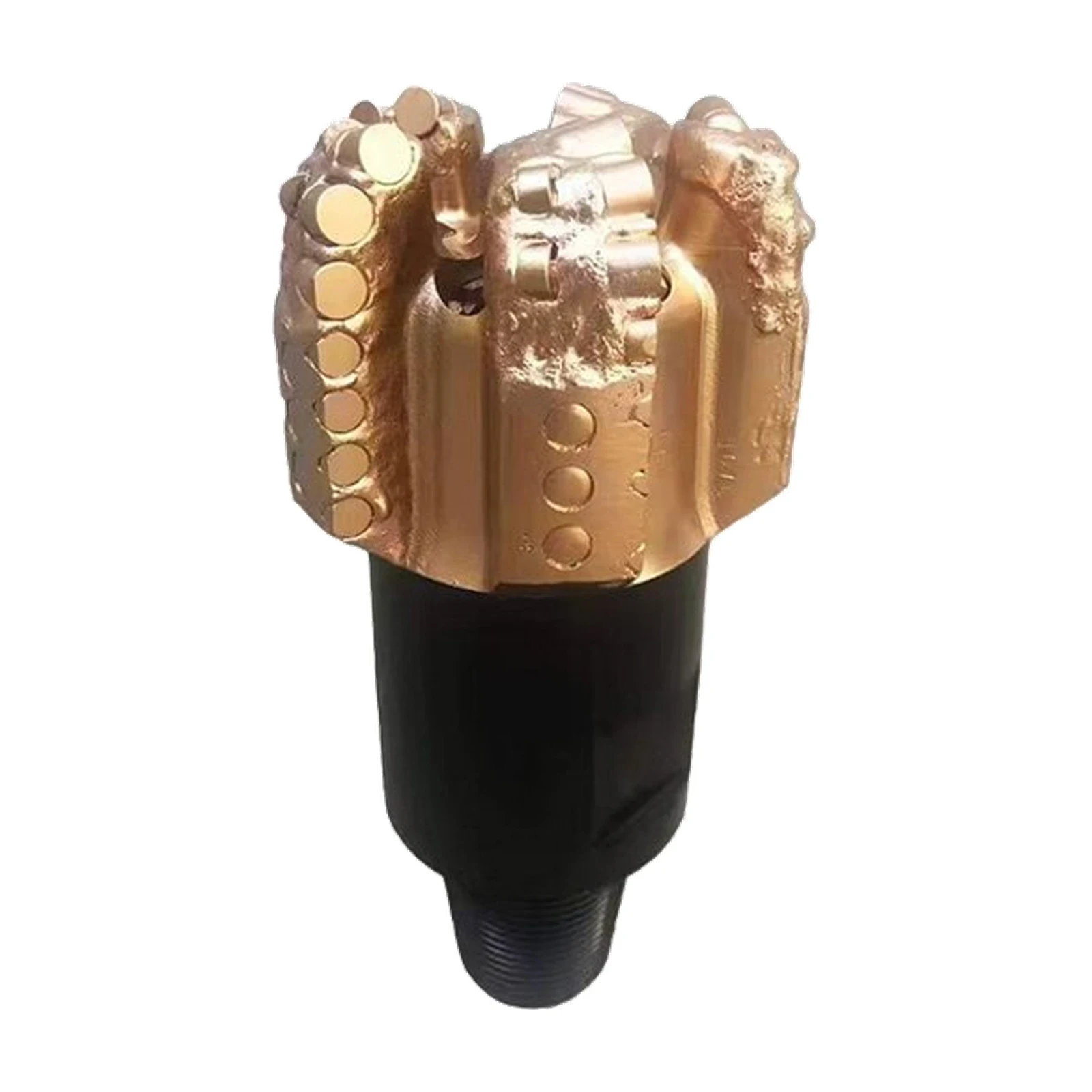

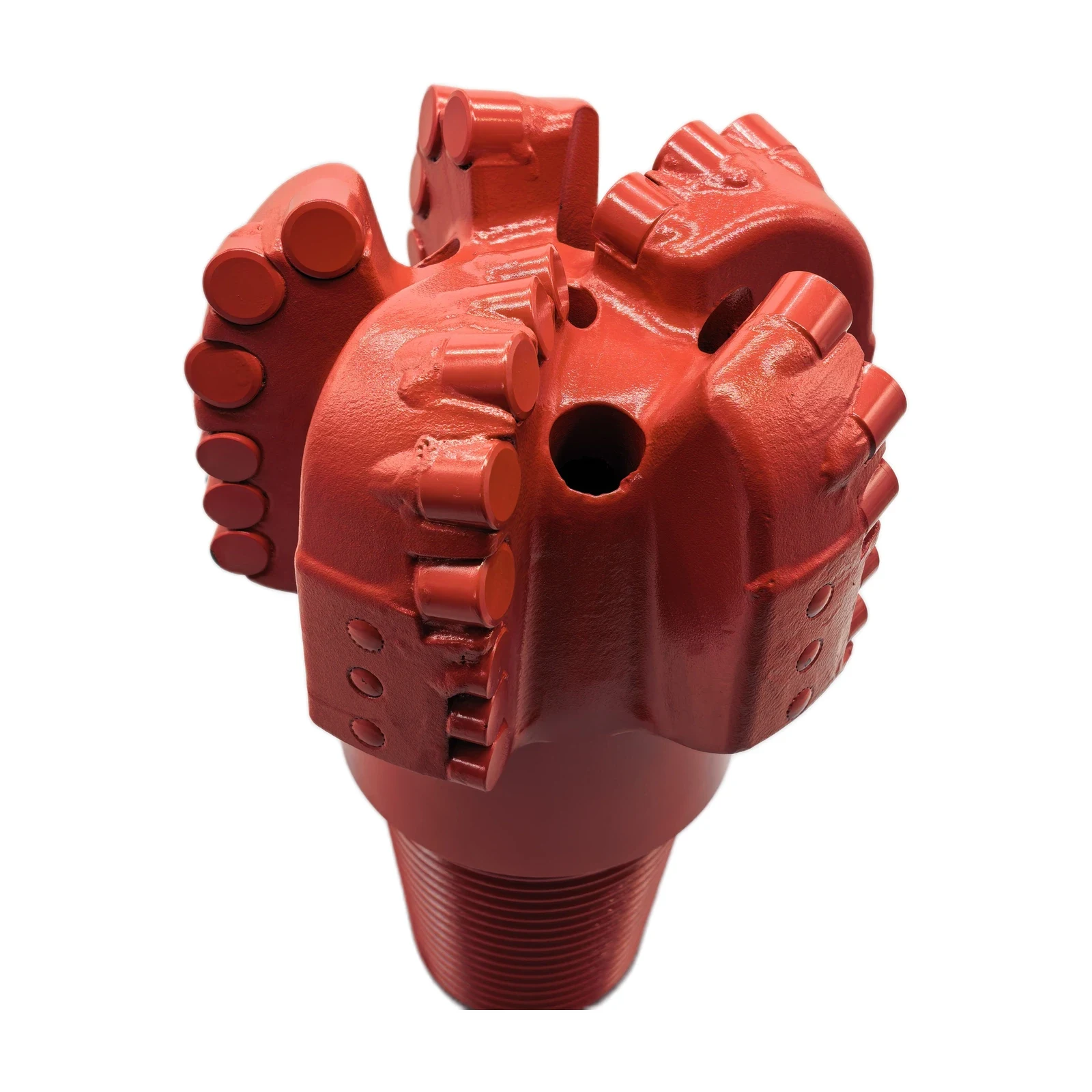

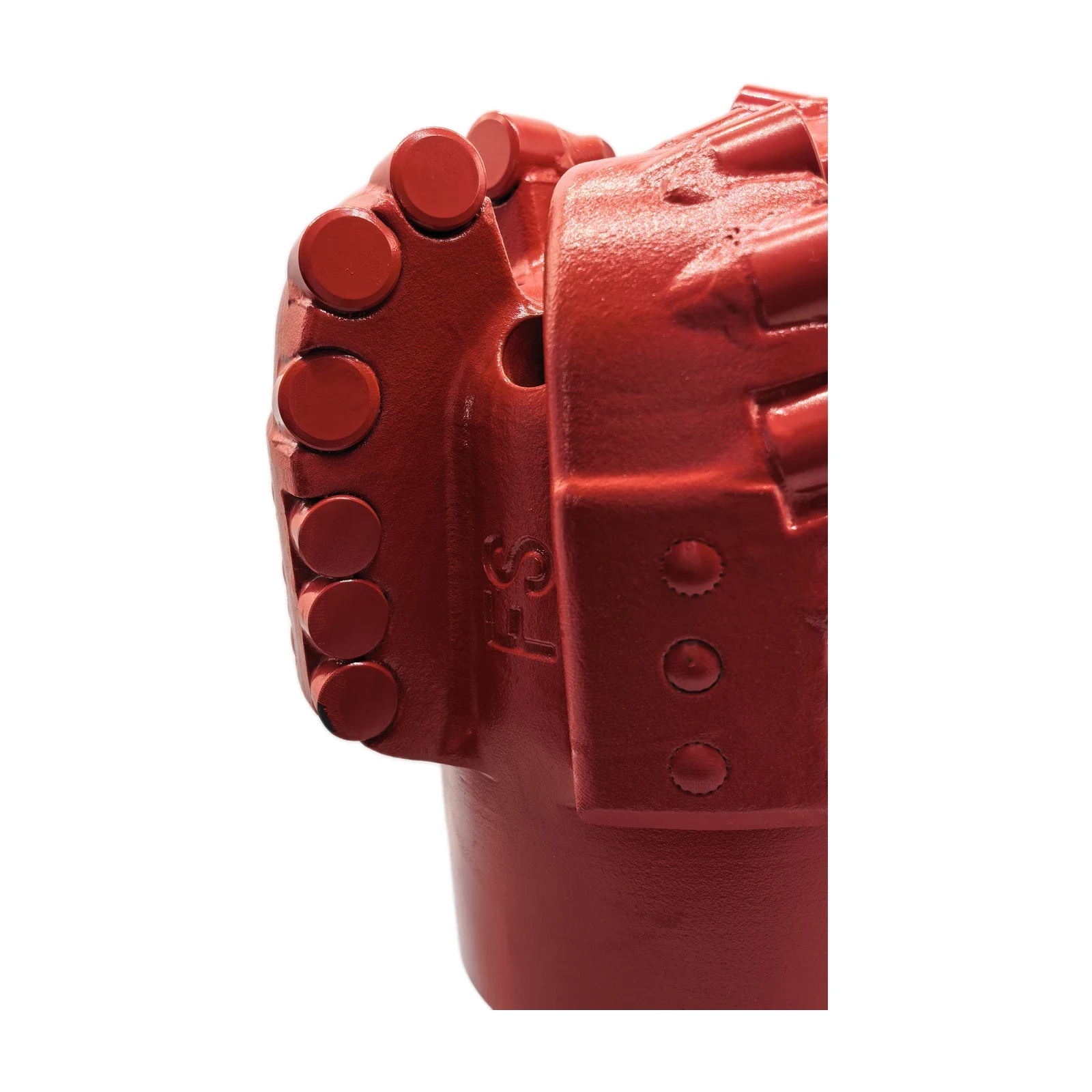

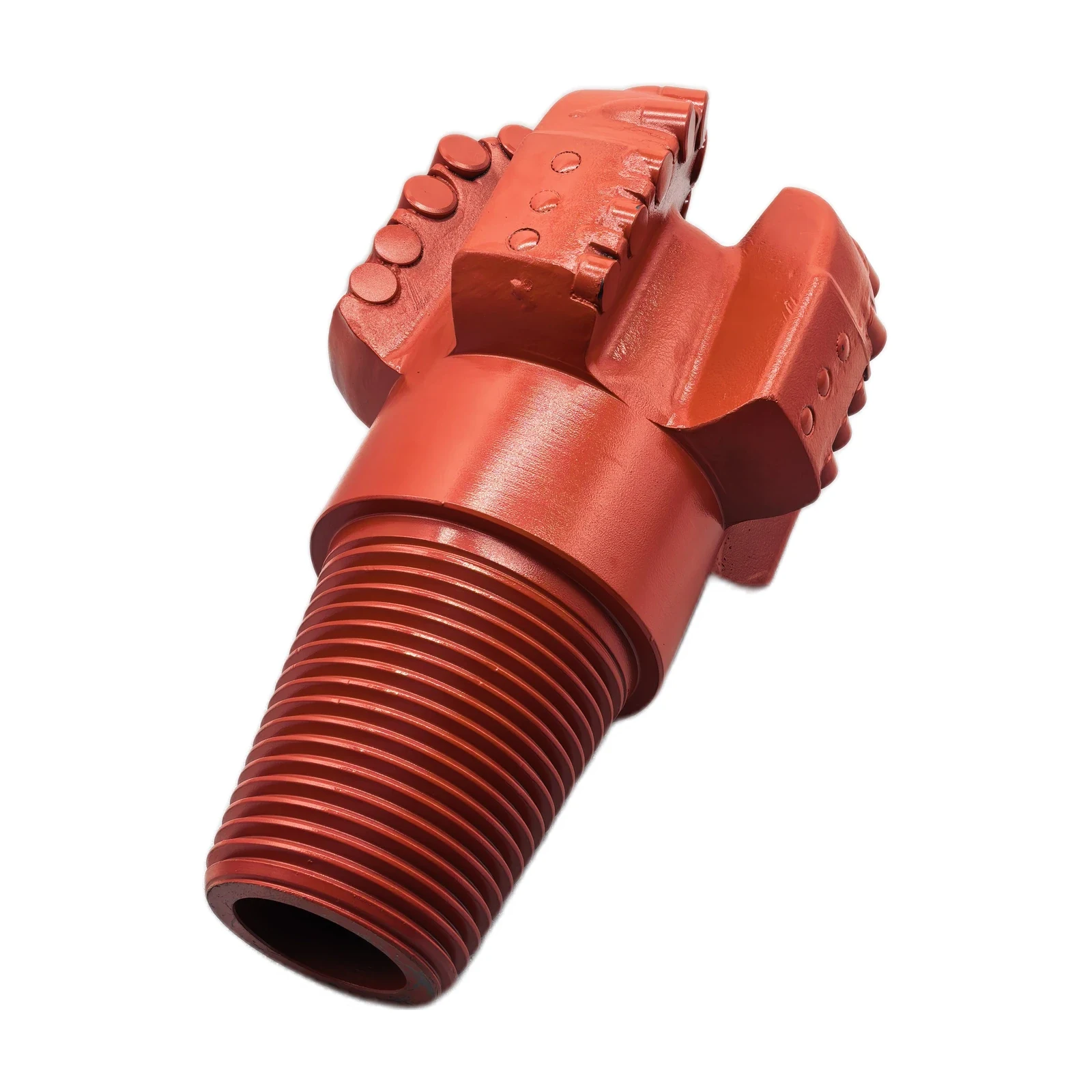

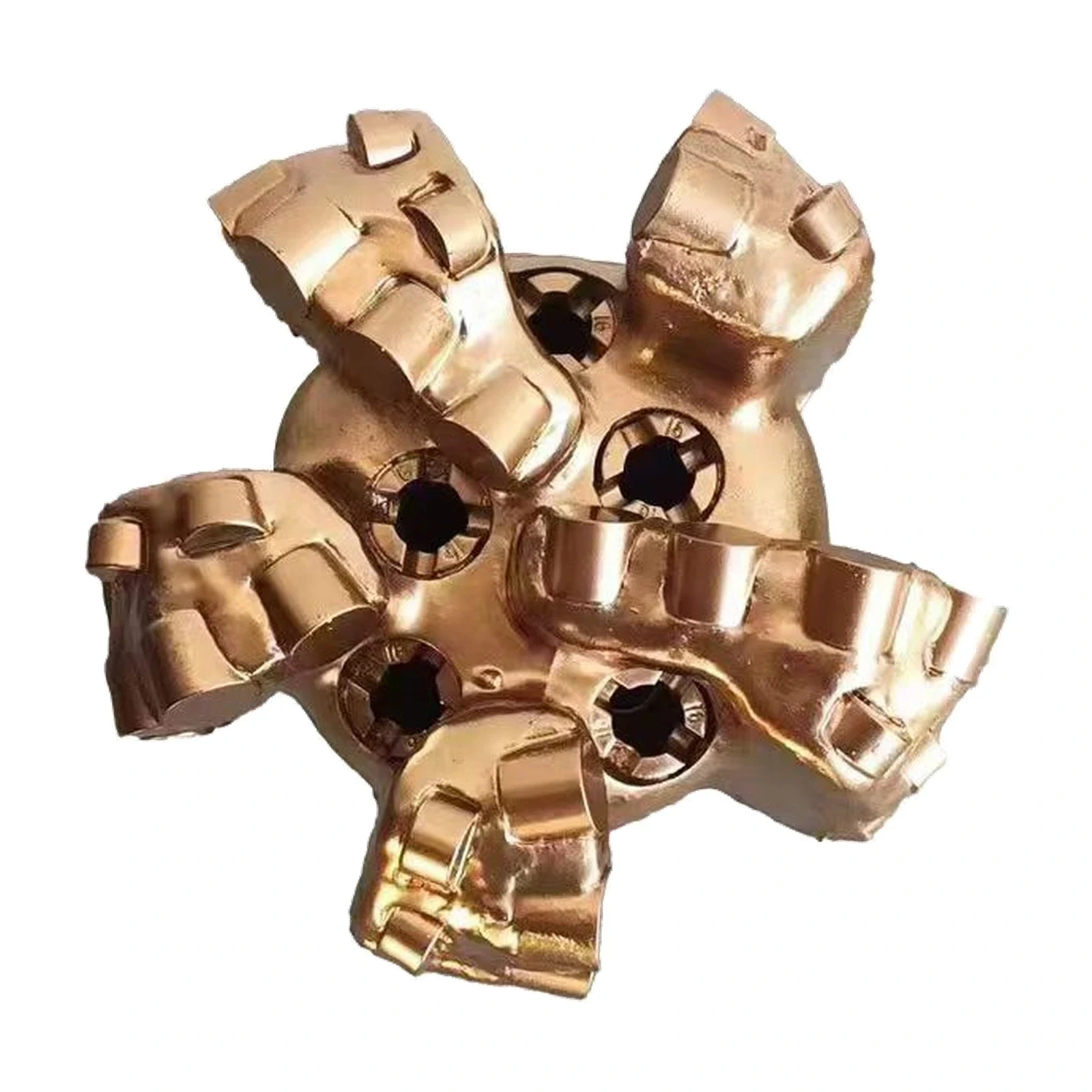

Product photographs
