DTH button-bit family

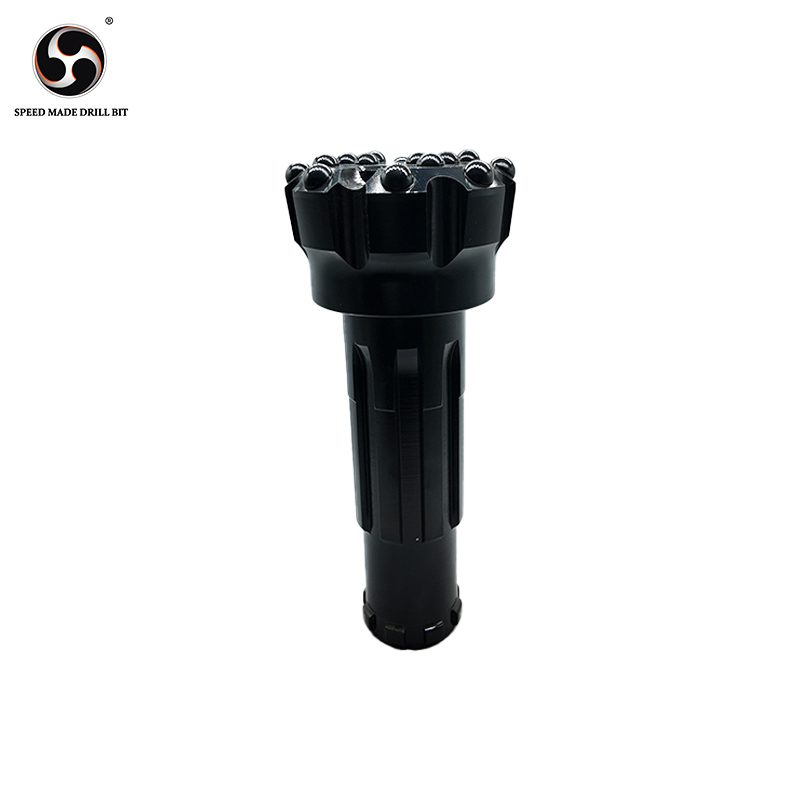

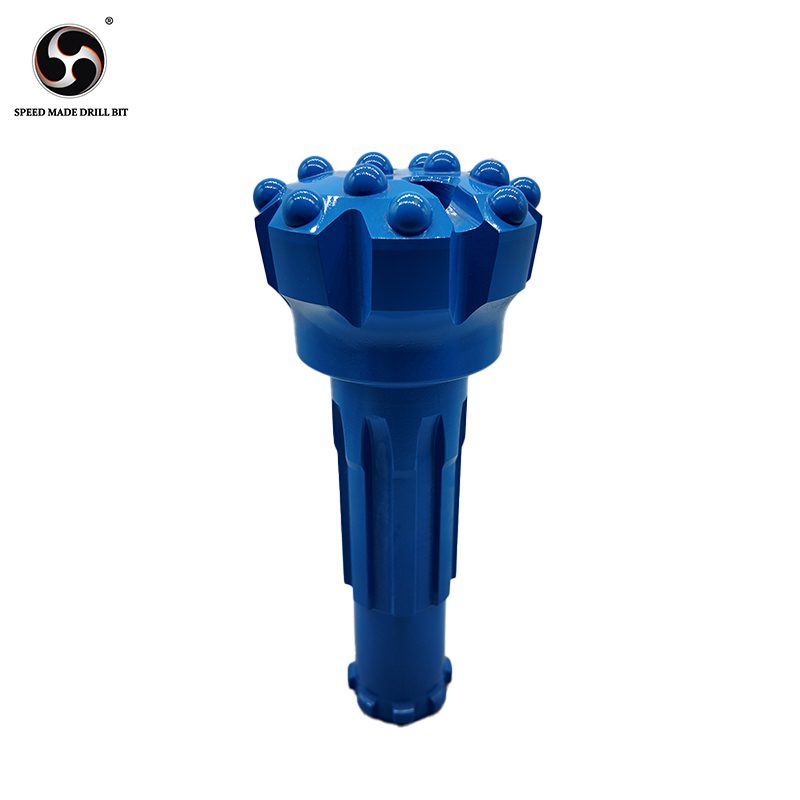

The photographs show button-faced DTH bits with splined shanks. This is a hammer-bit system, distinct from a rotary PDC or tricone bit. The selected head and shank must match the drilling assembly.
Catalogue configuration references
The FSDRILL product catalogue lists the following flat-face configurations. These are catalogue records for a configuration discussion; identify the selected tool drawing before matching an individual gallery photograph to a model.
| Catalogue model | Bit diameter | Face | Air holes |
|---|---|---|---|
| G146-F2Q7Y-P350 | 146 mm | Flat | 2 |
| G152-F2Q8Y-P350 | 152 mm | Flat | 2 |
Confirm the hammer and shank
Provide the hammer manufacturer and exact model, shank designation or dimensioned drawing, bit diameter and relevant air-system information. A model suffix or a similar-looking spline is not a verified hammer-fit specification. Include retaining and air-passage details needed for the selected assembly.
Compare the face and buttons
The catalogue illustrates convex, flat and concave faces and different cutting-element arrangements. State the proposed face, gauge and face-button layout and ground conditions. Select the working configuration with the hammer and flushing system.
The water-well tool-selection guide places DTH within a drilling-system decision. For a method comparison, read Top Hammer versus DTH. Send the hammer and tool references for an assembly review.
Product photographs
