Overview
This custom alloy drill-bit family is documented by the original 45/125 source-series batch photographs. The gallery shows the actual manufactured head configurations together.
Cutting Structure and Configuration
The cutting-head geometry and body proportions can be reviewed in the batch views. Series references identify the source family; detailed dimensions, edge specifications and connections need to be supplied for the chosen configuration.
Applications
This family supports a custom alloy-bit selection discussion where an existing head arrangement or drawing needs to be matched. It is not a substitute for a connection or dimensional drawing.
Selection and Customization
Share the required finished-hole diameter, drill-string connection, formation description and flushing method with FSDRILL. The cutter arrangement and connection should be selected together with the drilling assembly. Photographs show the illustrated configurations; the final specification is agreed for the project.

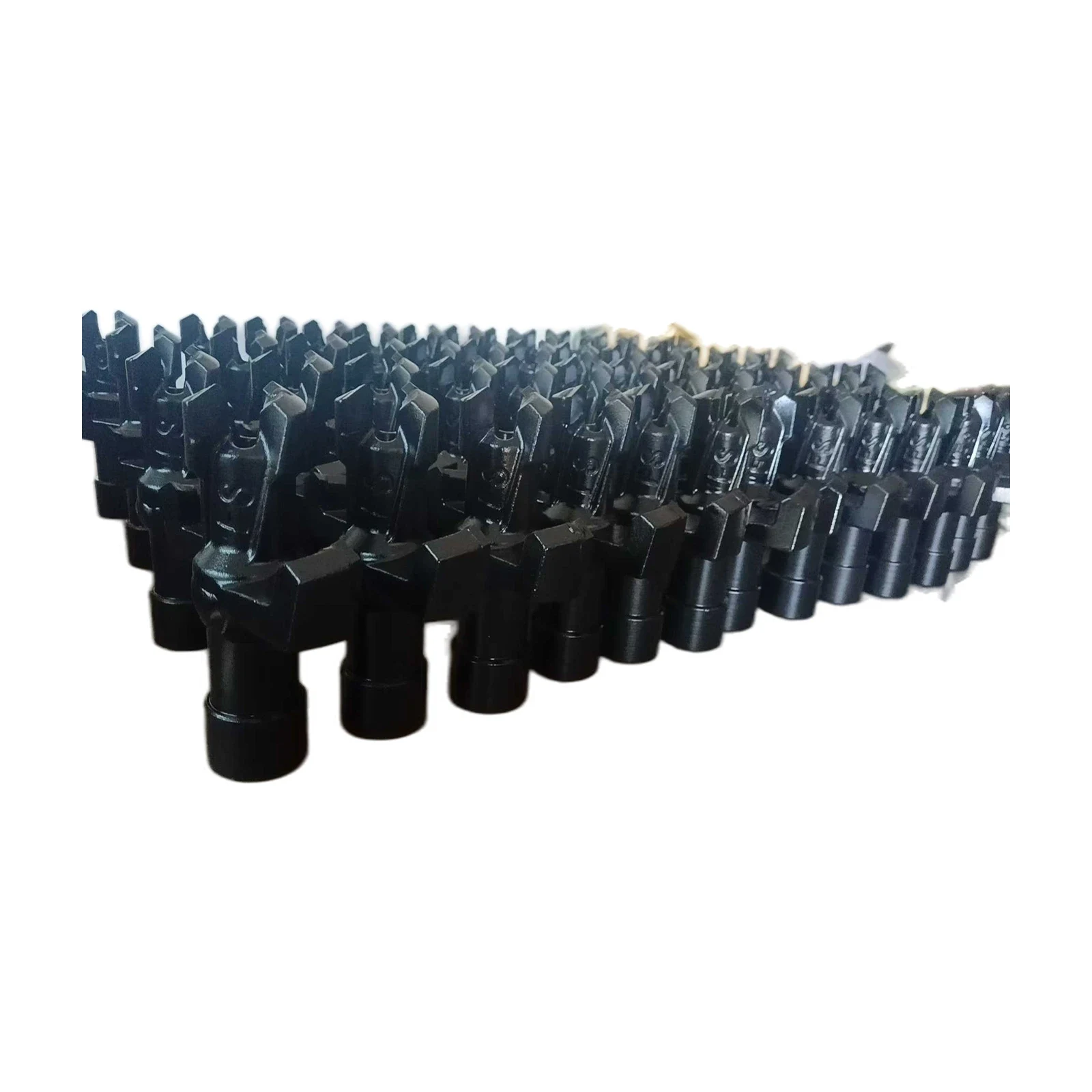

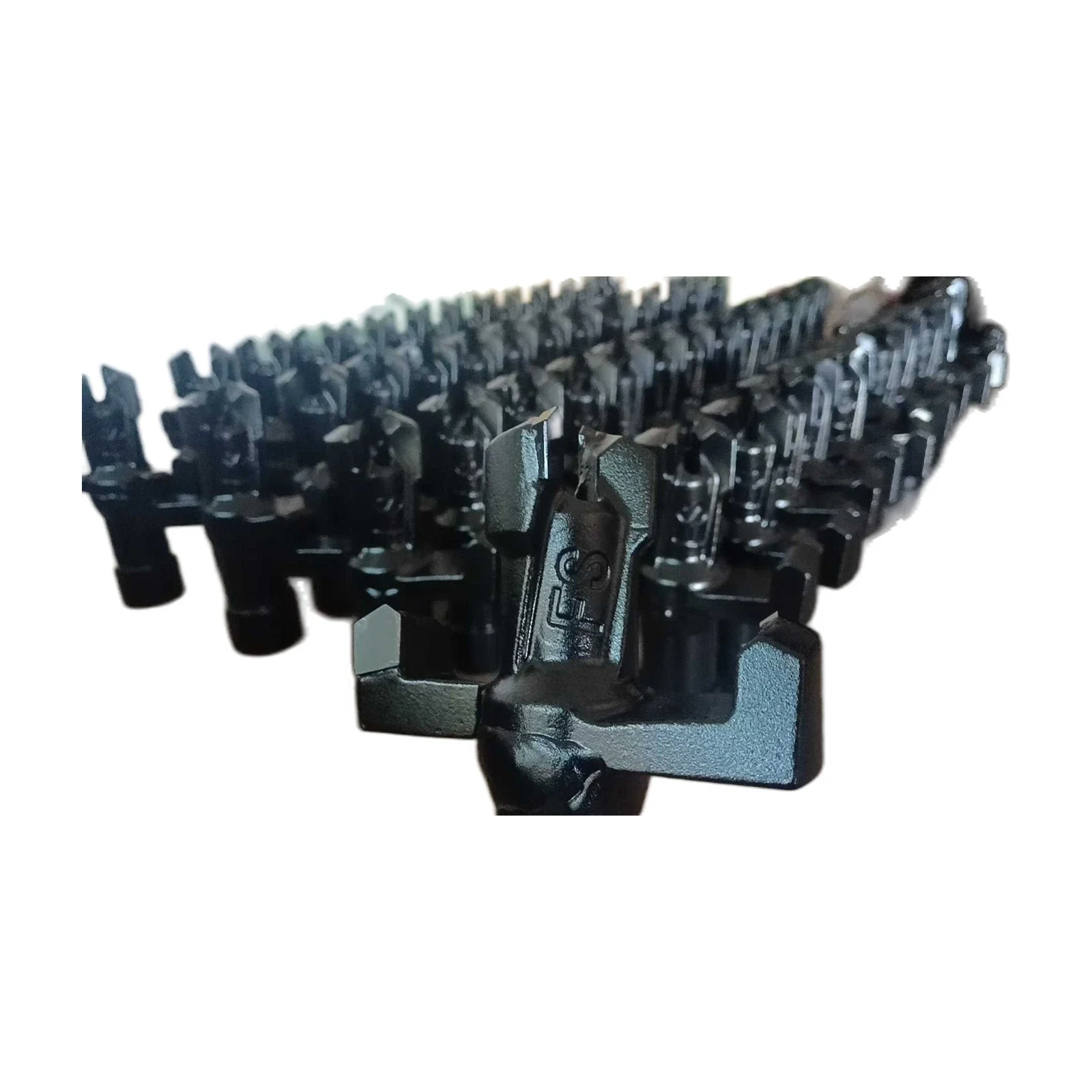

Actual Product Photographs
